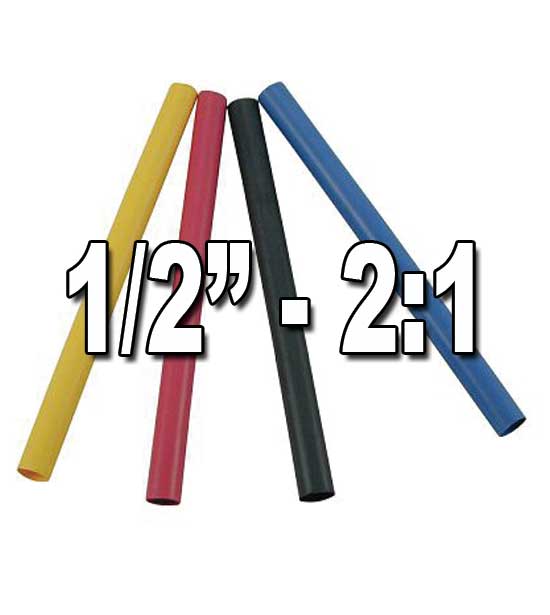

1/2” (.500”) 12.70mm 2 to 1 Single/Thin-Wall Polyolefin Heat Shrink Tubing
  • 1/2” (.500”) 12.70mm 2 to 1 Single/Thin-Wall Polyolefin Heat Shrink Tubing
  • 1/2” (.500”) 12.70mm 2 to 1 Single/Thin-Wall Polyolefin Heat Shrink Tubing
  • 1/2" 2:1 Single/Thin Wall Heat Shrink Polyolefin Tubing -
  • 1/2" 2:1 Single/Thin Wall Heat Shrink Polyolefin Tubing

1/2" 2:1 Single/Thin Wall Heat Shrink Polyolefin Tubing

  • Meets requirements of SAE-AMS-DTL-23053/5 (formerly MIL-I-23053/5, MIL-DTL-23053/5), Class 1, Class 2 (Clear), Class 3.
  • Meets requirements of AMS-3636 & AMS-3637.
  • RoHS Compliant.
  • UL Recognized: File E-39100.
  • CSA Certified: CSA LR-38227.
  • ABS Approved.
  • Continuous Operating Temperature: -55C (-67F) to 135C (275F) & up to 300C (572F) for short durations.
  • Shrink Temperature: 121C (250F).
  • Shrink Ratio: 2 to 1 (shrinks to 1/2 its original diameter).
  • Voltage Rating: 600Volts Maximum.  Cross-Linked Polyolefin Heat Shrink Tubing.  Single/Thin-Wall.
  • Flame-Retardant.
  • Flammability Rating: UL224 / VW-1.
  • NOTE: Clear tubing is NOT flame retardant/rated or UL listed.
  • Note: 4' sticks may be rolled or folded for shipping

    JT&T’s 2 to 1 Single/Thin Wall Cross-Linked Polyolefin Heat Shrink Tubing is irradiated, flexible & intended for general purpose applications requiring recognition by military & industrial specifications. UL recognized, CSA certified, RoHS compliant & ABS approved. Meets requirements of SAE-AMS-DTL-23053/5 (formerly MIL-I-23053/5, MIL-DTL-23053/5), Classes 1, 2 (Clear), 3.

    It is single-wall, flame-retardant, mechanically strong & will not melt or split when shrunk over irregularly-shaped objects. Applications include insulation, jacketing wire bundles, mechanical protection, physical/electrical protection of components, strain relief, solder insulation & lightweight harnessing where superior abrasion resistance is a plus. Also, used to identify & color-code electrical connections & wire bundles.

    Temperature rating for continuous operation from -55°C (-67°F) to 135°C (275°F) & up to 300°C (572°F) for short durations. Shrink Ratio is 2 to 1 (shrinks to 1/2 its original diameter). Shrink Temperature is 121°C (250°F). NOTE: Clear tubing is NOT flame retardant or UL listed.

    ⚠ WARNING: Cancer and reproductive harm - www.p65warnings.ca.gov

    Item # Description/Size Price Quantity
    4007H
    1/2" 2:1 Black Heat Shrink Tubing, 4" pieces, qty 5
    		 $2.48
    4027H
    1/2" 2:1 Red Heat Shrink Tubing, 4" pieces, qty 5
    		 $2.48
    4007-0F
    1/2" 2:1 Black Heat Shrink Tubing, 6" pieces, qty 8
    		 $5.32
    4007-1F
    1/2" 2:1 Clear Heat Shrink Tubing, 6" pieces, qty 8
    		 $5.32
    4007-2F
    1/2" 2:1 Red Heat Shrink Tubing, 6" pieces, qty 8
    		 $5.32
    4007-5F
    1/2" 2:1 Green Heat Shrink Tubing, 6" pieces, qty 8
    		 $5.32
    4007-6F
    1/2" 2:1 Blue Heat Shrink Tubing, 6" pieces, qty 8
    		 $5.32
    4007-7F
    1/2" 2:1 Yellow Heat Shrink Tubing, 6" pieces, qty 8
    		 $5.32
    4007-9F
    1/2" 2:1 White Heat Shrink Tubing, 6" pieces, qty 8
    		 $5.32
    J-8507
    1/2" 2:1 Black Heat Shrink Tubing, 4 ft stick, qty 1
    		 $4.32
    J-8517
    1/2" 2:1 Clear Heat Shrink Tubing, 4 ft stick, qty 1
    		 $4.32
    J-8527
    1/2" 2:1 Red Heat Shrink Tubing, 4 ft stick, qty 1
    		 $4.32
    J-8537
    1/2" 2:1 Yellow Heat Shrink Tubing, 4 ft stick, qty 1
    		 $4.32
    J-8547
    1/2" 2:1 Blue Heat Shrink Tubing, 4 ft stick, qty 1
    		 $4.32
    J-8557
    1/2" 2:1 White Heat Shrink Tubing, 4 ft stick, qty 1
    		 $4.32
    J-8587
    1/2" 2:1 Green Heat Shrink Tubing, 4 ft stick, qty 1
    		 $4.32
    J-8807
    1/2" 2:1 Black Heat Shrink Tubing, 32ft Spool, J-8807
    		 $27.94
    J-8817
    1/2" 2:1 Clear Heat Shrink Tubing, 32ft Spool
    		 $27.94
    J-8827
    1/2" 2:1 Red Heat Shrink Tubing, 32ft Spool
    		 $27.94
    J-8837
    1/2" 2:1 Yellow Heat Shrink Tubing, 32ft Spool
    		 $27.94
    J-8847
    1/2" 2:1 Blue Heat Shrink Tubing, 32ft Spool
    		 $27.94
    J-8857
    1/2" 2:1 White Heat Shrink Tubing, 32ft Spool
    		 $27.94
    J-8887
    1/2" 2:1 Green Heat Shrink Tubing, 32ft Spool
    		 $27.94
    4060H
    1/2" 2:1 Heat Shrink Tubing, 4" pieces, Assorted Colors, Qty 5
    		 $2.48
    4007S-5DOT
    1/2" 2:1 Green Heat Shrink Tubing, 200ft Spool
    		 $90.93
    4007S-1DOT
    1/2" 2:1 Clear Heat Shrink Tubing, 200ft Spool
    		 $90.93
    4007S-2DOT
    1/2" 2:1 Red Heat Shrink Tubing, 200ft Spool
    		 $90.93
    4007S-7DOT
    1/2" 2:1 Yellow Heat Shrink Tubing, 200ft Spool
    		 $90.93
    4007S-6DOT
    1/2" 2:1 Blue Heat Shrink Tubing, 200ft Spool
    		 $90.93
    4007S-0DOT
    1/2" 2:1 Black Heat Shrink Tubing, 200ft Spool
    		 $90.93
    4007S-9DOT
    1/2" 2:1 White Heat Shrink Tubing, 200ft Spool
    		 $90.93
