  • Meets requirements of ASTM D792 density test.
  • ISO/TS 16949 & ISO 9001 Compliant.
  • RoHS Compliant.
  • Continuous Operating Temperature: -40dC (-40dF) to 93dC (200dF).
  • Flexibility: Excellent.
  • Flame-Retardant: No.
  • Material: Polyethylene.
  • Use 5024F tool to easily pull wires & cables through split loom

    Split Loom although lightweight, is a bulky item that is very expensive to ship and does not qualify for our normal free shipping. We're sorry, but bulk rolls of 1100ft incur a $20 shipping surcharge per item. This will be included in the final shipping cost of your order.

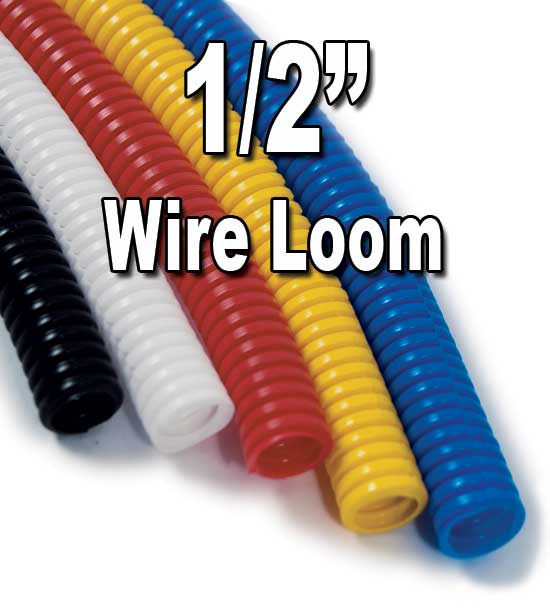

    JT&T’s Polyethylene Flex-Guard Convoluted Tubing (Split Loom) is designed to provide a flexible, crush-resistant protection for wiring assemblies. The tubing is a corrugated tube used to provide protection to a wire harness or any other product that may be subject to abnormal conditions, such as continuous abrasion & vibration wear, puncturing, water, snow, ice, salt & UV rays. Flexible convoluted tubing/conduit is manufactured from a blend of low density polyethylene & linear low density polyethylene resins. The convoluted surface enhances the appearance of your product by providing a uniform tailored finish. The split seam feature allows wires to be inserted easily, eliminating the costly time needed to apply tape, braid or loom. Since the seam is not permanently sealed, the costs of repair or service are also reduced. Temperature rating from -40°C (-40°F) to 93°C (200°F).

    Item # Description/Size Price Quantity
    4306F

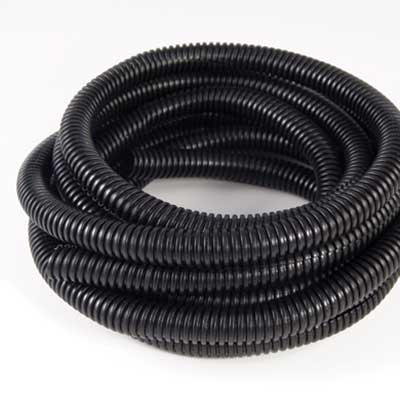

    1/2" Black Split Wire Loom Flex-Guard Convoluted Tubing, 7ft
    $3.62
    4306-50
    1/2" Black Split Wire Loom Flex-Guard Convoluted Tubing, 50ft
    $21.62
    4306C
    1/2" Black Split Wire Loom Flex-Guard Convoluted Tubing, 100ft
    $35.94
    4306
    1/2" Black Split Wire Loom Flex-Guard Convoluted Tubing, 1100ft
    $220.44
    4306-9F
    1/2" White Split Wire Loom Flex-Guard Convoluted Tubing, 7ft
    $4.79
    4306-9C
    1/2" White Split Wire Loom Flex-Guard Convoluted Tubing, 100ft
    $38.81
    4306-9
    1/2" White Split Wire Loom Flex-Guard Convoluted Tubing, 1100ft
    $300.77
    5306-2F

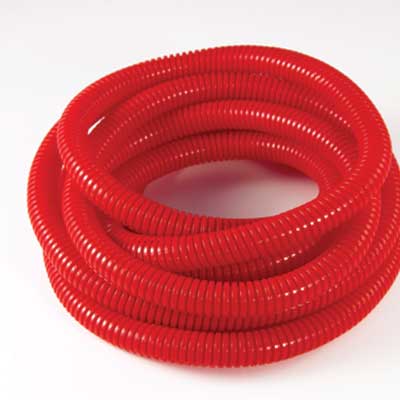

    1/2" Red Split Wire Loom Flex-Guard Convoluted Tubing, 7ft
    $4.79
    5306-2C
    1/2" Red Split Wire Loom Flex-Guard Convoluted Tubing, 100ft
    $38.81
    5306-2
    1/2" Red Split Wire Loom Flex-Guard Convoluted Tubing, 1100ft
    $300.77
    5306-4F

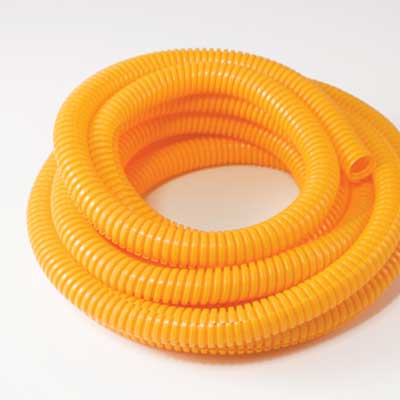

    1/2" Yellow Split Wire Loom Flex-Guard Convoluted Tubing, 7ft
    $4.79
    5306-4C
    1/2" Yellow Split Wire Loom Flex-Guard Convoluted Tubing, 100ft
    $38.81
    5306-4
    1/2" Yellow Split Wire Loom Flex-Guard Convoluted Tubing, 1100ft
    $300.77
    5306-6F

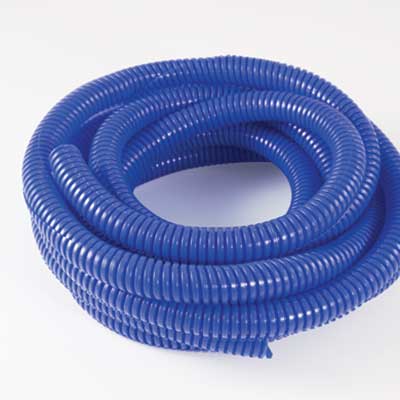

    1/2" Blue Split Wire Loom Flex-Guard Convoluted Tubing, 7ft
    $4.79
    5306-6C
    1/2" Blue Split Wire Loom Flex-Guard Convoluted Tubing, 100ft
    $38.81
    5306-6
    1/2" Blue Split Wire Loom Flex-Guard Convoluted Tubing, 1100ft
    $300.77
