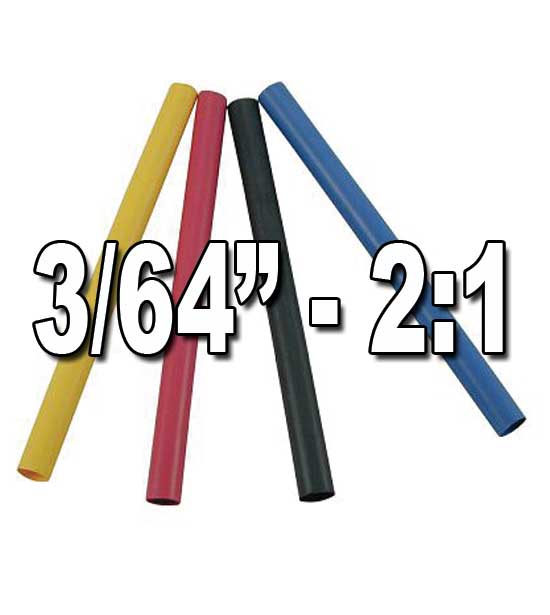

    JT&T's 2 to 1 Single/Thin Wall Cross-Linked Polyolefin Heat Shrink Tubing is irradiated, flexible & intended for general purpose applications requiring recognition by military & industrial specifications.

    ULrecognized, CSA certified, RoHS compliant & ABS approved.Meets requirements of SAE-AMS-DTL-23053/5 (formerly MIL-I-23053/5, MIL-DTL-23053/5), Classes 1, 2 (Clear), 3. It is single-wall, flame-retardant, mechanically strong & will not melt or split when shrunk over irregularly-shaped objects.

    Applications include insulation, jacketing wire bundles, mechanical protection, physical/electrical protection of components, strain relief, solder insulation, lightweight harnessing where superior abrasion resistance is a plus. Also, used to identify &color-code electrical connections & wire bundles.

    Temperature rating for continuous operation from -55°C (-67°F) to 135°C (275 deg;F) & ;up to 300deg;C (572deg;F) for short durations.

    Shrink Ratio is 2 to 1 (shrinks to 1/2 its original diameter). Shrink Temperature is 121degC (250deg;F).

    NOTE:Clear tubing is NOT flame retardant or UL listed.

    Key Points:

    • Meets requirements of SAE-AMS-DTL-23053/5 (formerly MIL-I-23053/5, MIL-DTL-23053/5), Class 1, Class 2 (Clear), Class 3.
    • Meets requirements of AMS-3636 & AMS-3637.
    • RoHS Compliant.
    • UL Recognized: File E-39100.
    • CSA Certified: CSA LR-38227.
    • ABS Approved.
    • Continuous Operating Temperature: -55°C (-67°F) to 135°C (275°F) & up to 300°C (572°F) for short durations.
    • Shrink Temperature: 121°C (250°F).
    • Shrink Ratio: 2 to 1 (shrinks to 1/2 its original diameter).
    • Voltage Rating: 600Volts Maximum.
    • Cross-Linked Polyolefin Heat Shrink Tubing.
    • Single/Thin-Wall.
    • Flame-Retardant.
    • Flammability Rating: UL224 / VW-1.
    • NOTE: Clear Tubing is NOT flame retardant or UL listed.
    • See "Heat Shrink Tubing-Tools" for torches or heat gun to shrink & seal heat shrink tubing.
    • Note: 4' sticks may be rolled or folded for shipping

    ⚠ WARNING: Cancer and reproductive harm - www.p65warnings.ca.gov

    Item # Description/Size Price Quantity
    4000H
    3/64" 2:1 Black Heat Shrink Tubing, 4" pieces, qty 8
    $2.60
    4000S-0DOT
    3/64" 2:1 Black Heat Shrink Tubing, 500ft Spool
    $87.99
