3/16" 2:1 Single/Thin Wall Heat Shrink Polyolefin Tubing
  • 3/16" 2:1 Single/Thin Wall Heat Shrink Polyolefin Tubing
  • 3/16" 2:1 Single/Thin Wall Heat Shrink Polyolefin Tubing
  • 3/16" 2:1 Single/Thin Wall Heat Shrink Polyolefin Tubing -
  • 3/16" 2:1 Single/Thin Wall Heat Shrink Polyolefin Tubing

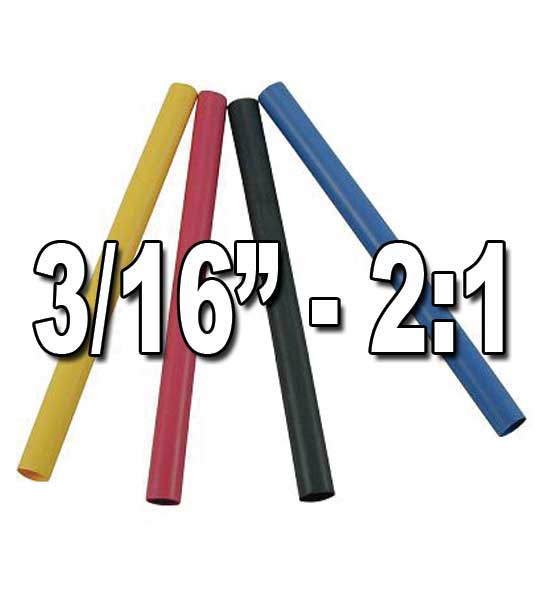

3/16" 2:1 Single/Thin Wall Heat Shrink Polyolefin Tubing

  • Meets requirements of SAE-AMS-DTL-23053/5 (formerly MIL-I-23053/5, MIL-DTL-23053/5), Class 1, Class 2 (Clear), Class 3.
  • Meets requirements of AMS-3636 & AMS-3637.
  • RoHS Compliant.
  • UL Recognized: File E-39100.
  • CSA Certified: CSA LR-38227.
  • ABS Approved.
  • Continuous Operating Temperature: -55C (-67F) to 135C (275F) & up to 300C (572F) for short durations.
  • Shrink Temperature: 121C (250F).
  • Shrink Ratio: 2 to 1 (shrinks to 1/2 its original diameter).
  • Voltage Rating: 600Volts Maximum.  Cross-Linked Polyolefin Heat Shrink Tubing.  Single/Thin-Wall.
  • Flame-Retardant.
  • Flammability Rating: UL224 / VW-1.
  • NOTE: Clear tubing is NOT flame retardant/rated or UL listed.
  • Note: 4' sticks may be rolled or folded for shipping

    Manufactured by Dunbar, world respected leader in heat shrink manufacturing. 1635F Spec.

    JT&T’s 2 to 1 Single/Thin Wall Cross-Linked Polyolefin Heat Shrink Tubing is irradiated, flexible & intended for general purpose applications requiring recognition by military & industrial specifications. UL recognized, CSA certified, RoHS compliant & ABS approved. Meets requirements of SAE-AMS-DTL-23053/5 (formerly MIL-I-23053/5, MIL-DTL-23053/5), Classes 1, 2 (Clear), 3.

    It is single-wall, flame-retardant, mechanically strong & will not melt or split when shrunk over irregularly-shaped objects. Applications include insulation, jacketing wire bundles, mechanical protection, physical/electrical protection of components, strain relief, solder insulation & lightweight harnessing where superior abrasion resistance is a plus. Also, used to identify & color-code electrical connections & wire bundles.

    Temperature rating for continuous operation from -55°C (-67°F) to 135°C (275°F) & up to 300°C (572°F) for short durations. Shrink Ratio is 2 to 1 (shrinks to 1/2 its original diameter). Shrink Temperature is 121°C (250°F). NOTE: Clear tubing is NOT flame retardant or UL listed.

    ⚠ WARNING: Cancer and reproductive harm - www.p65warnings.ca.gov

    Item # Description/Size Price Quantity
    4004H
    3/16" 2:1 Black Heat Shrink Tubing, 4" pieces, qty 7
    		 $2.48
    4024H
    3/16" 2:1 Red Heat Shrink Tubing, 4" pieces, qty 7
    		 $2.48
    4004-0F
    3/16" 2:1 Black Heat Shrink Tubing, 6" pieces, qty 8
    		 $3.80
    4004-1F
    3/16" 2:1 Clear Heat Shrink Tubing, 6" pieces, qty 8
    		 $3.80
    4004-2F
    3/16" 2:1 Red Heat Shrink Tubing, 6" pieces, qty 8
    		 $3.80
    4004-5F
    3/16" 2:1 Green Heat Shrink Tubing, 6" pieces, qty 8
    		 $3.80
    4004-6F
    3/16" 2:1 Blue Heat Shrink Tubing, 6" pieces, qty 8
    		 $3.80
    4004-7F
    3/16" 2:1 Yellow Heat Shrink Tubing, 6" pieces, qty 8
    		 $3.80
    4004-9F
    3/16" 2:1 White Heat Shrink Tubing, 6" pieces, qty 8
    		 $3.80
    J-8504
    3/16" 2:1 Black Heat Shrink Tubing, 4 ft stick, qty 1
    		 $2.78
    J-8514
    3/16" 2:1 Clear Heat Shrink Tubing, 4 ft stick, qty 1
    		 $2.78
    J-8524
    3/16" 2:1 Red Heat Shrink Tubing, 4 ft stick, qty 1
    		 $2.78
    J-8534
    3/16" 2:1 Yellow Heat Shrink Tubing, 4 ft stick, qty 1
    		 $2.78
    J-8544
    3/16" 2:1 Blue Heat Shrink Tubing, 4 ft stick, qty 1
    		 $2.78
    J-8554
    3/16" 2:1 White Heat Shrink Tubing, 4 ft stick, qty 1
    		 $2.78
    J-8584
    3/16" 2:1 Green Heat Shrink Tubing, 4 ft stick, qty 1
    		 $2.78
    J-8804
    3/16" 2:1 Black Heat Shrink Tubing, 50ft Spool
    		 $27.94
    J-8814
    3/16" 2:1 Clear Heat Shrink Tubing, 50ft Spool
    		 $27.94
    J-8824
    3/16" 2:1 Red Heat Shrink Tubing, 50ft Spool
    		 $27.94
    J-8834
    3/16" 2:1 Yellow Heat Shrink Tubing, 50ft Spool
    		 $27.94
    J-8844
    3/16" 2:1 Blue Heat Shrink Tubing, 50ft Spool
    		 $27.94
    J-8854
    3/16" 2:1 White Heat Shrink Tubing, 50ft Spool
    		 $27.94
    J-8884
    3/16" 2:1 Green Heat Shrink Tubing, 50ft Spool
    		 $27.94
    4057H
    3/16" 2:1 Heat Shrink Tubing, 4" pieces, Assorted Colors, Qty 10
    		 $2.48
    4004S-5DOT
    3/16" 2:1 Green Heat Shrink Tubing, 250ft Spool
    		 $61.40
    4004S-1DOT
    3/16" 2:1 Clear Heat Shrink Tubing, 250ft Spool
    		 $61.40
    4004S-2DOT
    3/16" 2:1 Red Heat Shrink Tubing, 250ft Spool
    		 $61.40
    4004S-7DOT
    3/16" 2:1 Yellow Heat Shrink Tubing, 250ft Spool
    		 $61.40
    4004S-6DOT
    3/16" 2:1 Blue Heat Shrink Tubing, 250ft Spool
    		 $61.40
    4004S-0DOT
    3/16" 2:1 Black Heat Shrink Tubing, 250ft Spool
    		 $61.40
    4004S-9DOT
    3/16" 2:1 White Heat Shrink Tubing, 250ft Spool
    		 $61.40
